全球高端旋转阀

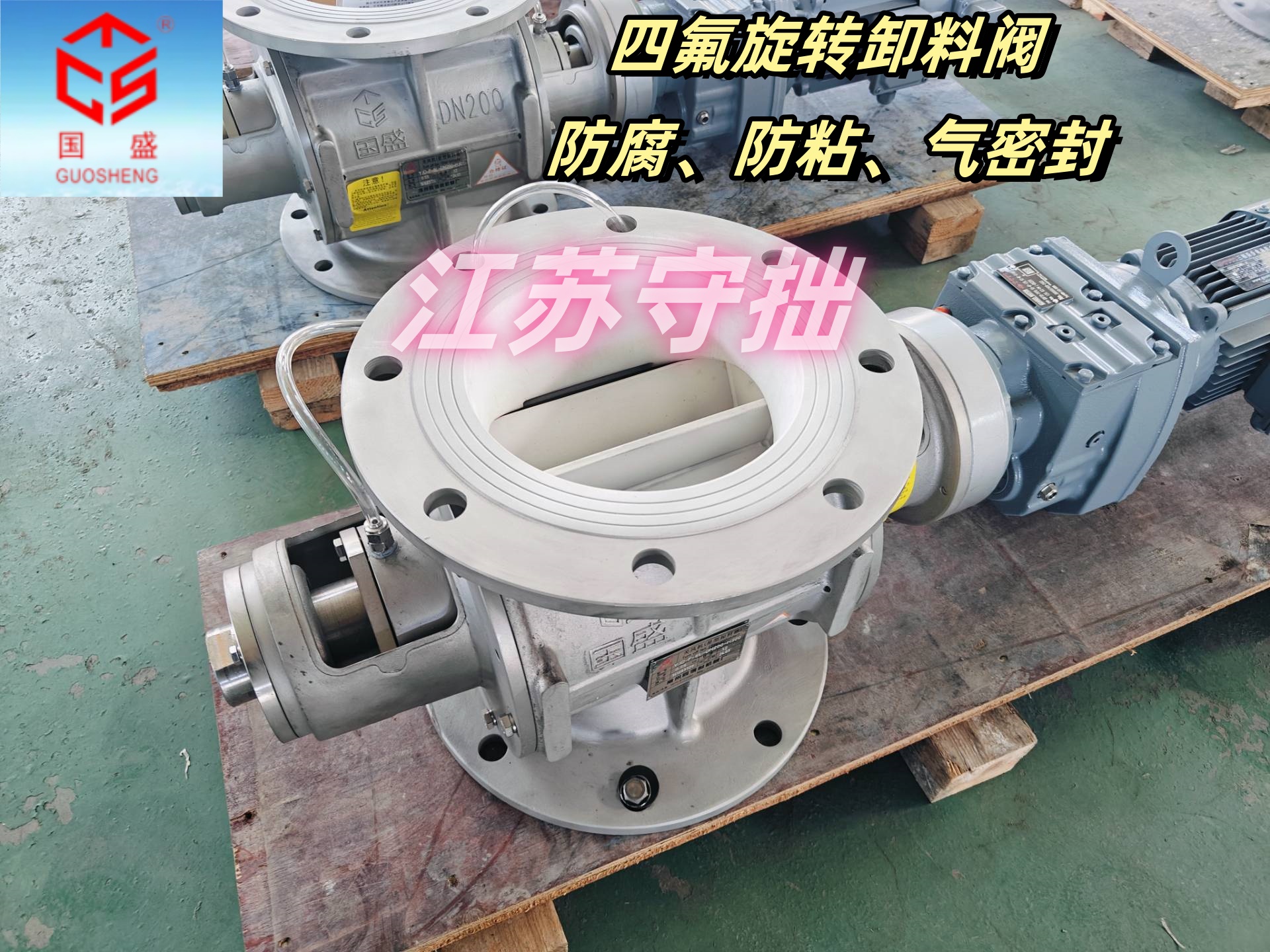

　　PTFE rotary valve, with impeller made of polytetrafluoroethylene (PTFE), slide rod type or quick-release type, easy to clean, modified plastic, used for powder feeding, size DN250. requires high-precision sealing and air locking.

　　旋转阀内衬四氟在一定的温度条件下热稳定性极高并且耐磨性很好，同时有着优良的耐油性和耐酸碱性能，与金属材料有良好抗腐蚀性及耐磨性。并具有良好的抗化学作用，所以可防止金属腐蚀;还具有良好的耐化学腐蚀性及抗氧化性。它的优良特性解决了我国锂电、化工、石油、制药等领域的许多问题，同时也被应用为密封材料和填充材料。

　　防粘附作用：内衬四氟旋转阀表面具有良好的不粘附性，能够防止旋转阀表面附着物的黏附，避免管道物料：粉体/颗粒料在长期运行过程中出现结垢、石灰积垢等现象，从而提高了设备的效率。

　　防腐蚀作用：四氟内衬旋转阀具有优异的耐腐蚀性能，能够抵抗酸、碱、盐和各种有机物的侵蚀，可以保护旋转阀免受化学物质的腐蚀，延长设备的使用寿命。

　　密封锁气作用：四氟旋转阀卸料阀具备卓越的密封性能，能够确保卸料阀严密封闭。它能够有效防止介质泄漏和外部杂质进入，保护工艺过程的安全性和稳定性。

       江苏守拙主要定制高端旋转阀：超级工程/重大项目/科研项目定制旋转阀。【电话/微信咨询：陈经理18068546632】

       部分选用内衬四氟旋转阀案例：

　　不锈钢材质，防爆电机，阀体、叶片镀四氟  接口法兰尺寸定制，需要良好的密闭性，能耐0.3Mpa压力。

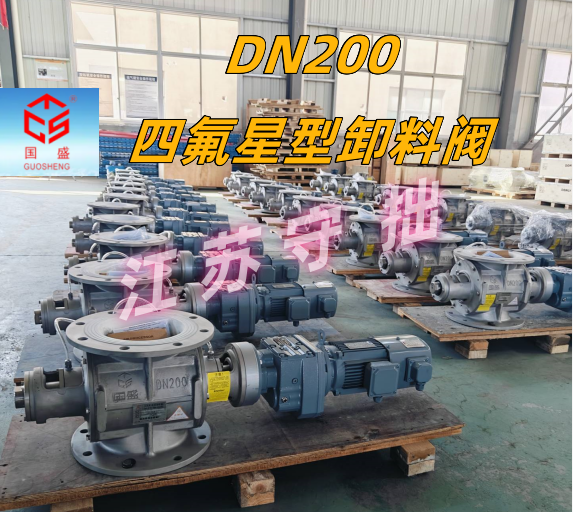

　　壳体：304不锈钢，内表面及法兰口内衬四氟，DN200 PN10 RF。叶轮：304不锈钢，外表面衬四氟，一体成型。旋转轴：304不锈钢材质。盘根密封：不漏料跑料，结构5层。电机：江特、卧龙、皖南、南洋，变频控制。减速机：摆线针式或齿轮式，品牌:国贸、杰牌传动、恒星科技。

　　物料：锂电材料，不锈钢加内衬四氟乙烯，DN300.密封锁气。

　　四氟旋转阀，叶轮聚四氟乙烯的材质，滑杆式或快拆式，易于清洗，改性塑料，用于粉体下料，尺寸DN250.需要高精度密封锁气。

　　防金属接触，内衬尼龙或四氟，10吨/h，防爆电机，物料：溴化氢粉体，还会有一些结块，正压输送，压力1MPa。

         《扫二维码-添加 陈经理 微信-咨询内衬四氟旋转阀》

　　Anti-adhesion effect: The surface of the PTFE-lined rotary valve exhibits excellent non-adhesiveness, effectively preventing the adhesion of substances on the valve surface. This avoids scaling and lime deposition of pipeline materials, such as powders and granular materials, during long-term operation, thereby enhancing equipment efficiency.

　　Corrosion resistance: The PTFE-lined rotary valve exhibits excellent corrosion resistance, capable of resisting the erosion from acids, alkalis, salts, and various organic compounds. It can protect the rotary valve from corrosion caused by chemical substances, thereby extending the service life of the equipment.

　　Sealing and air locking function: The PTFE rotary valve discharge valve possesses excellent sealing performance, ensuring tight sealing of the discharge valve. It can effectively prevent medium leakage and the entry of external impurities, safeguarding the safety and stability of the process.

　　Made of stainless steel, equipped with an explosion-proof motor, the valve body and blades are coated with PTFE. The flange size of the interface is customized, requiring good tightness and capable of withstanding a pressure of 0.3 MPa.

　　To prevent metal contact, it is lined with nylon or PTFE. With a capacity of 10 tons per hour, it features an explosion-proof motor. The material handled is hydrogen bromide powder, which may contain some agglomerates. It is conveyed under positive pressure, with a pressure of 1 MPa.
