　　Material: Lithium ion ternary positive electrode, requiring the rotary valve to support quick disassembly and cleaning of the sliding rod, completely prohibiting copper and zinc, and material contact with ceramic materials. Valves require extremely high sealing performance, with dust leakage not exceeding 0.01mg/m ³ and a production capacity of 2-3t/h.

　　Materials: Graphite, 304 and lined ceramic, with a specific gravity of 0.3-1.2g/cm ³, DN200. flow rate requirement: ≥ 3t/h, material SUS304. copper and zinc prohibited, sliding rod rotary valve, detachable and washable, airtight sealing requirement.

　　Materials: white sugar powder and brown sugar, food grade 304 stainless steel, sliding rod rotary valve with a diameter of 300. Used for positive pressure conveying, airtight seal, to be cleaned, with a discharge capacity of 1.5T/h.

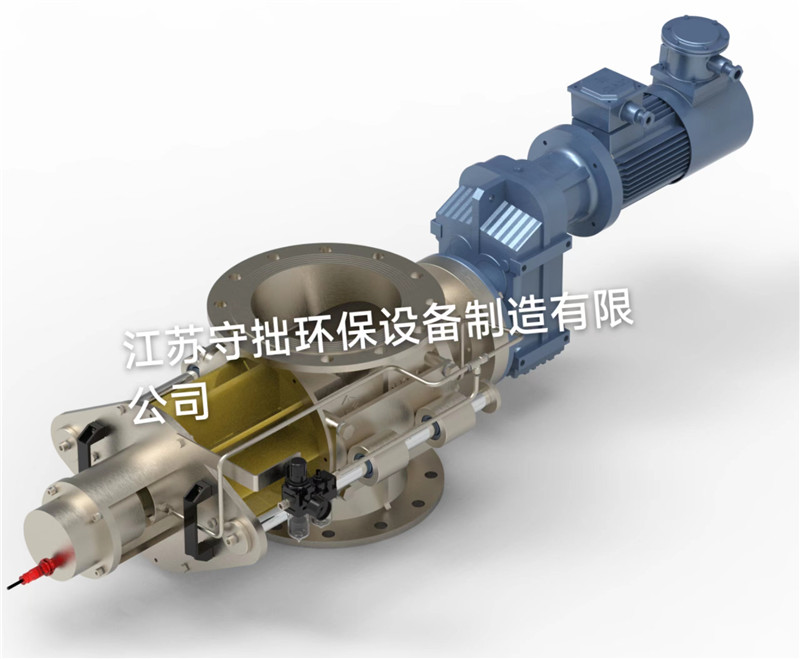

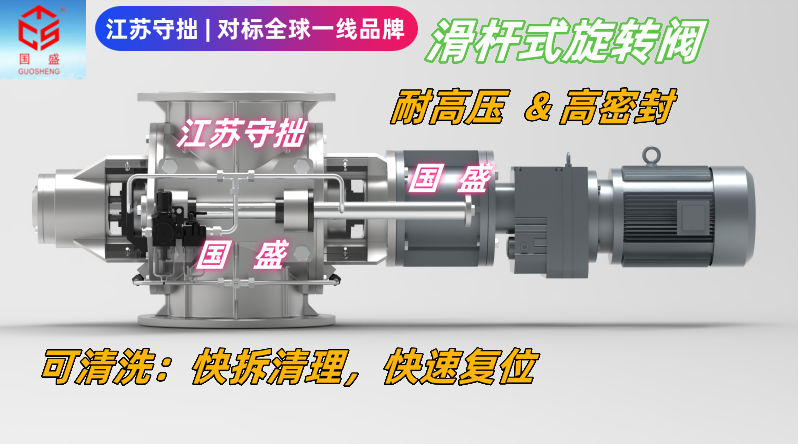

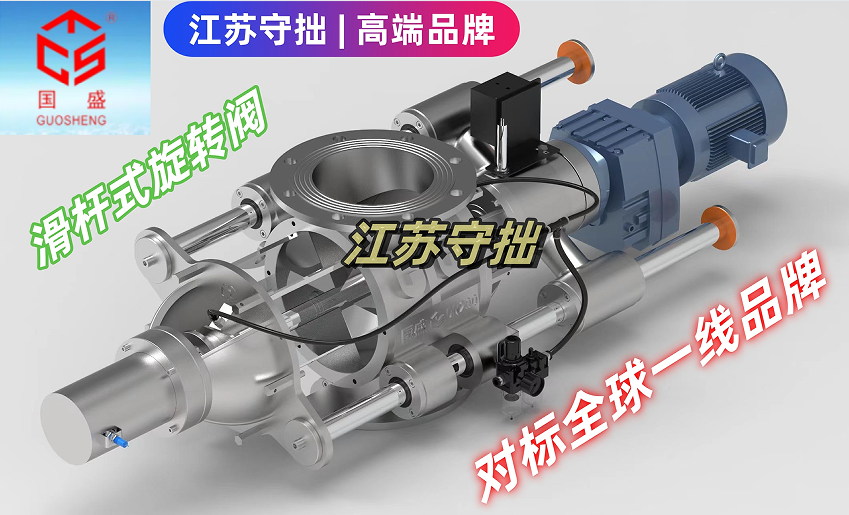

　　滑杆式旋转阀：

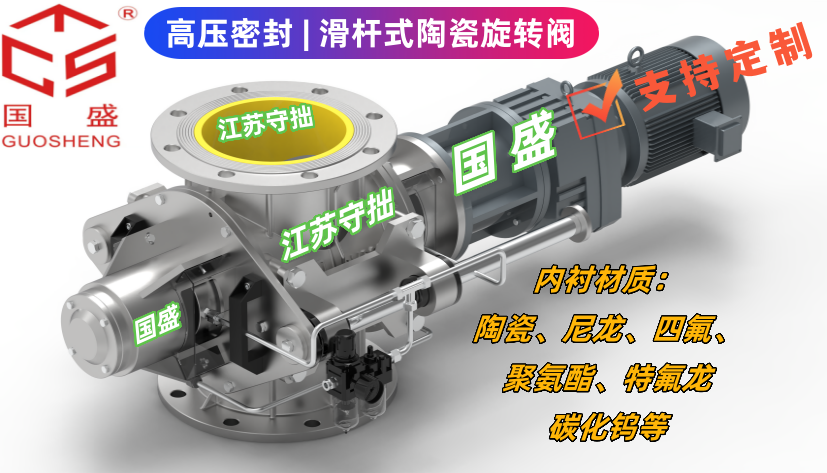

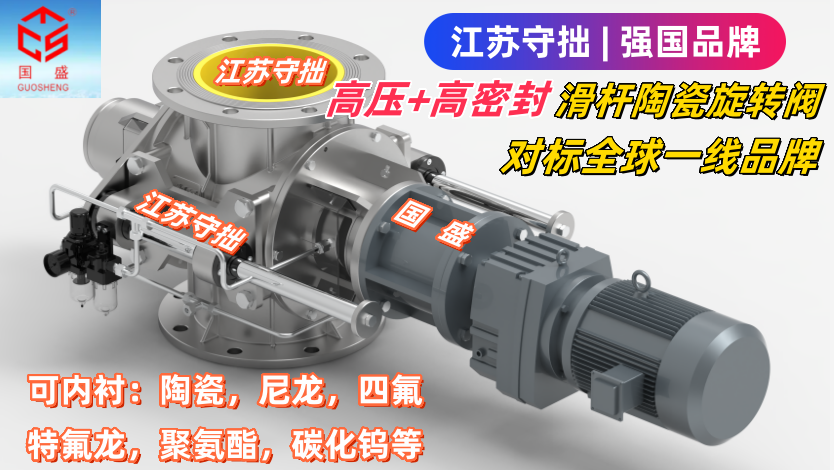

　　主要结构：外壳金属;物料接触部分：可内衬陶瓷、尼龙、四氟、特氟龙、钛合金、铝合金、不锈钢。

　　主要用于输送锂电池正极材料、磷酸铁锂、三元材料、化工、制药、食品原料等。

　　特点：物料粘接设备，可以快速清理，快速复位。

　　稳定性优于其他快拆式阀门，可原地抽出转子。

       本产品可完全对标国外品牌的滑杆清洗型。

　　江苏守拙主要定制高端旋转阀：超级工程/重大项目/科研项目定制旋转阀。【电话/微信咨询：陈经理18068546632】

　　部分选用滑杆式旋转阀案例：

　　物料：锂电三元正极，要求旋转阀支持滑杆快拆清理，全面禁铜锌，物料接触陶瓷材质。阀门对密封性要求极高，粉尘泄漏量不大于0.01mg/m³，产能2~3t/h。

　　物料：石墨，304和内衬陶瓷，物料堆积比重0.3~1.2g/㎝³，DN200.流量要求：≥3t/h，材质SUS304.禁铜禁锌，滑杆式旋转阀，可拆卸可清洗，气密封要求。

　　物料：白糖粉和红糖，食品级304不锈钢，滑杆旋转阀口径300.正压输送用，气密封，要清洗型，卸料量1.5T/h。

　　卸料关风机：物料是淀粉，4-5m³/h，滑杆式清洗型关风机，电机粉尘气体复合型防爆，内外抛光304.气密封GSB-10/DN250.N=1.5kW，ExdIIBT4/ExtIIIBT130℃防护级别:IP65法兰:PL250(B)-10.

　　食品级旋转下料阀(快拆易清洗旋转阀)，尺寸DN200.物料接触部分材质为食用级SUS304.变频电机，粉尘防爆 ，物料名称：麦芽糖醇，颗粒物，40℃，物料含水 <1%，物料粒度 10目，堆积密度(g/cm³) 0.8.

　　便携式旋转下料阀(滑动杆旋转阀接口DN200)2吨/小时，常温糖粉，0.5毫米颗粒状，抛光0.6-0.8.附加条件：整机304材质，粉尘防爆，电机二级能效。

　　输送物料：颗粒食用盐，输送量 5T/h，滑杆快拆式，材质304不锈钢，法兰标准GB，SEW减速机;正压风力输送使用;输送设计压力：50Kpa。

　　锁风快拆式：输送能力>7.5t/h，变频可调，输送物料为电石粉尘，入料侧(阀上)压力为正压(20kPa)，排料侧(阀下)为常压，锁风阀轴封处配备氮气密封装置，不得向外漏气漏粉尘，氮气压力0.2MPa，锁风阀应为快拆结构，便于在内部卡料时打开侧盖，取出转子阀板进行清理;电动机与减速机采用直连传动，减速机与阀轴采用直连传动;电动机电压380V，防爆等级需满足ExdIICT4和ExdIIIBT130℃，防护等级IP55.绝缘等级F级，二级能效。

　　滑杄式卸料器，304材质，产量: 1.2吨/小时，法兰进/出尺寸：内径320毫米，外径450毫米(12个孔)来自气旋的粉类产品分割器。

　　物料：聚合物颗粒，粒径≤18目，含水分，可能会结块，材质316L，投料口直径≤15cm，输送流量0-40kg/min，流量精度0.5kg/min，附着料如何清洗，耐腐蚀，变频电机，可调转速，物料洁净度要求较高，输送过程中不能引入其他杂质。

　　滑杆清洗型旋转卸料阀(拉杆快拆)，配备功率1.5KW,材质304.转速24r/min,每转体积4.8L,输送量1600kg/h,配备减速机为SEW,密封方式气密封，电机与减速机方式为齿轮连接。符合食品安全要求(卫生级，无死角)。物料介质:酵母细粉，介质密度500-600kg/m3.L=340mm。

　　旋转阀，叶轮聚四氟乙烯的材质，滑杆/快拆式，输送改性塑料，用于粉体下料，尺寸DN350.

        《扫二维码-添加 陈经理 微信-咨询滑杆式旋转阀》

　　Food grade rotary feeding valve (quick detachable and easy to clean rotary valve), size DN200. material contact part made of edible grade SUS304. variable frequency motor, dust explosion-proof, material name: maltitol, particulate matter, 40 ℃, material moisture content<1%, material particle size 10 mesh, bulk density (g/cm ³) 0.8.

　　Material conveying: granular edible salt, conveying capacity 5T/h, sliding rod quick release type, material 304 stainless steel, flange standard GB, SEW reducer; Positive pressure wind power transmission is used; Delivery design pressure: 50Kpa.

　　Sliding rod cleaning type rotary discharge valve (pull rod quick release), equipped with a power of 1.5KW, material of 304. speed of 24r/min, volume of 4.8L per revolution, conveying capacity of 1600kg/h, equipped with SEW reducer, sealing method of gas seal, motor and reducer connected by gear. Meets food safety requirements (hygiene grade, no dead corners). Material medium: yeast powder, medium density 500-600kg/m3. L=340mm.

　　Lock air quick release type: conveying capacity>7.5t/h, adjustable frequency conversion, conveying material for calcium carbide dust, positive pressure (20kPa) on the feeding side (above the valve), and atmospheric pressure on the discharging side (below the valve). The lock air valve shaft seal is equipped with a nitrogen sealing device to prevent air leakage and dust leakage to the outside. The nitrogen pressure is 0.2MPa. The lock air valve should be a quick release structure to facilitate opening the side cover and removing the rotor valve plate for cleaning when clamping materials internally; The electric motor and reducer adopt direct transmission, and the reducer and valve shaft adopt direct transmission; The voltage of the motor is 380V, and the explosion-proof rating must meet ExdIICT4 and ExdIIIBT130 ℃, with a protection level of IP55. insulation level of F, and second level energy efficiency.
